Q61F pipeline:What is a Q61F pipeline ball valve?

Q: What is a Q61F pipeline ball valve?

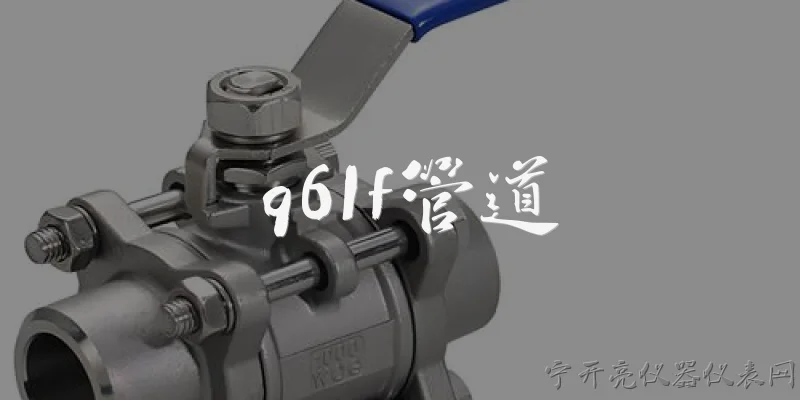

A: A Q61F pipeline ball valve is a type of industrial ball valve designed for pipeline applications. The 'Q' indicates it is a ball valve, '6' denotes a three-piece or welded body design, '1' signifies a floating ball structure, and 'F' represents a PTFE or similar soft seal material. The 'Q61F' designation typically refers to a three-piece, welded, floating ball valve with a soft seal, suitable for pipeline systems. These valves are commonly used to cut off, distribute, and change the flow direction of media in pipelines. They offer advantages such as quick quarter-turn operation, low fluid resistance, and reliable sealing. The welded connection ensures a leak-proof joint, making Q61F valves ideal for high-pressure and high-temperature pipelines in industries like oil, gas, chemical, and water treatment.

Q: What are the typical applications of Q61F pipeline ball valves?

A: Q61F pipeline ball valves are widely used in various industrial pipelines due to their robust design and reliable sealing. Common applications include oil and natural gas transmission lines, where they control the flow of crude oil, refined products, and natural gas. In the chemical industry, they handle corrosive fluids and solvents, thanks to the PTFE seal's chemical resistance. Water treatment and supply systems use them for flow regulation and isolation. Power plants employ them in steam and cooling water circuits. The welded body makes them suitable for underground installation and areas where leakage must be minimized. Additionally, they are found in pharmaceutical and food processing pipelines, where hygiene and tight shutoff are critical. Their ability to handle high pressures and temperatures, along with quick operation, makes Q61F valves a versatile choice for demanding pipeline services.

Q: How does a Q61F pipeline ball valve differ from other ball valves?

A: The Q61F pipeline ball valve distinguishes itself from other ball valves primarily through its welded body construction and soft seal design. Unlike flanged or threaded ball valves, the Q61F features a welded connection, which eliminates potential leak paths and provides a more secure, permanent joint. This makes it ideal for high-pressure and hazardous applications. The 'F' designation indicates a PTFE or similar soft seat, offering excellent sealing even at low pressures, whereas metal-seated ball valves are better for high-temperature or abrasive media. The floating ball design (denoted by '1') means the ball is not trunnion-mounted but is pushed against the downstream seat by line pressure, ensuring tight shutoff. Compared to trunnion-mounted valves, floating ball valves are simpler and more cost-effective for smaller sizes. Overall, Q61F valves are optimized for pipeline integrity and reliability.

Q: What are the maintenance requirements for Q61F pipeline ball valves?

A: Maintenance for Q61F pipeline ball valves focuses on ensuring continued sealing performance and operational reliability. Since the valve is welded into the pipeline, maintenance often requires line shutdown and cutting the valve out if internal parts need replacement, which is a significant consideration. Routine maintenance includes periodic operation (quarter-turn) to prevent sticking, inspection for external leaks, and checking the actuator if equipped. The soft seals (PTFE) may wear over time, especially in abrasive or high-cycle applications, leading to reduced sealing. In some designs, the valve can be repaired in-line by removing the bonnet and replacing the seat and seals, but welded ends may limit this. It is advisable to follow manufacturer guidelines, monitor pressure drops, and schedule inspections based on service conditions. Proper installation and filtration of media can extend the valve's lifespan.

Words of experience

Common scenarios of "Q61F pipeline"

【Engineer】 Hi, I'm having trouble with the Q61F pipeline. It seems to be clogged again. Can you help?

【Technician】 Sure, I can help. What are the symptoms? Is there a pressure drop?

【Engineer】 Yes, the upstream pressure is normal, but downstream pressure is almost zero. Flow rate has dropped significantly.

【Technician】 That sounds like a blockage. Have you checked the filters?

【Engineer】 Yes, we replaced the filters yesterday, but the problem persists. Could it be a valve issue?

【Technician】 Possibly. Check if the control valve is fully open. Sometimes the actuator fails.

【Engineer】 I just checked. The valve is open, and the actuator seems fine. What else could cause this?

【Technician】 Maybe there's a partial blockage in the pipeline itself. When was the last time you pigged the line?

【Engineer】 We pigged it about six months ago. But the product is corrosive, so maybe there's buildup.

【Technician】 Corrosive product? That could cause scale or corrosion products to accumulate. You might need to inspect with a camera.

【Engineer】 We don't have a camera available right now. Is there a way to clear it without inspection?

【Technician】 You could try increasing the flow temporarily to flush it, but be careful not to overpressure.

【Engineer】 We tried that, but the pressure just spiked and we had to shut down. Any other ideas?

【Technician】 Then you might need to isolate the section and use chemical cleaning. What's the product?

【Engineer】 It's a diluted sulfuric acid solution. We usually use a caustic wash, but that might not be effective for scale.

【Technician】 For acid scale, you might need a stronger acid wash or a chelating agent. But ensure compatibility with the pipe material.

【Engineer】 The pipe is stainless steel 316L. Would hydrochloric acid be safe?

【Technician】 No, HCl can cause chloride stress corrosion cracking in 316L. Avoid it. Use citric acid or EDTA instead.

【Engineer】 Good to know. We'll try citric acid. How long should we circulate it?

【Technician】 Typically 2-4 hours at elevated temperature, then flush thoroughly. Monitor for any pressure changes.
